SRC531 3inch 81mm Reverse Circulation RC Hammer for High Performance Well Drilling

Name: SRC531 3inch 81mm Reverse Circulation RC Hammer for High Performance Well Drilling
Brand: Sollroc
Price: 1 USD

China SRC531 3inch 81mm Reverse Circulation RC Hammer for High Performance Well Drilling wholesale

Place of Origin : Hunan, China

Brand Name : Sollroc

MOQ : 1

Price : $1,500

Weight : 29 kg

Material : Carbon Steel

Processing Type : Forging

Size : 3 inch

Outer diameter : 81 mm

Length : 1063 mm

Button shape : ballistic/semi-ballistic/spherical

Bit shank : SRC531

Hole range : φ84-φ100

Connection thread : 3" Remet

Working pressure : 1.0Mpa-3.0Mpa

Air consumption : 14 m³/min @ 3.0 Mpa

Length (less bit) : 1069 mm

Contact Now

Product Description

Reverse circulation drilling is similar to air core drilling as the samples that are drilled up from the earth are not simply placed onto the surface surrounding the machine but the samples are instead shot up into the hollow pipe of the machine. This is one of the biggest benefits of the reverse circulation drilling procedure because it prevents the samples from being contaminated from other materials that it might come into contact with once it has been removed from the earth.

Technical parameters

Length (less bit)	1069mm
Weight (less bit)	29.0kg
External diamater	φ81mm
Bit shank	SRC531
Hole range	φ84-φ100
Connection thread	3" Remet
Working pressure	1.0Mpa-3.0Mpa
Air consumption	1.7 Mpa	7 m³/min
	2.4 Mpa	10 m³/min
	3.0 Mpa	14 m³/min

Images

Delivery time

Usually it needs 15-25 days,3-5days if have stock.

Shipping & Package

Shipping

By Air, By Sea or By express.

Package

Ply - wooden cases + Pallet

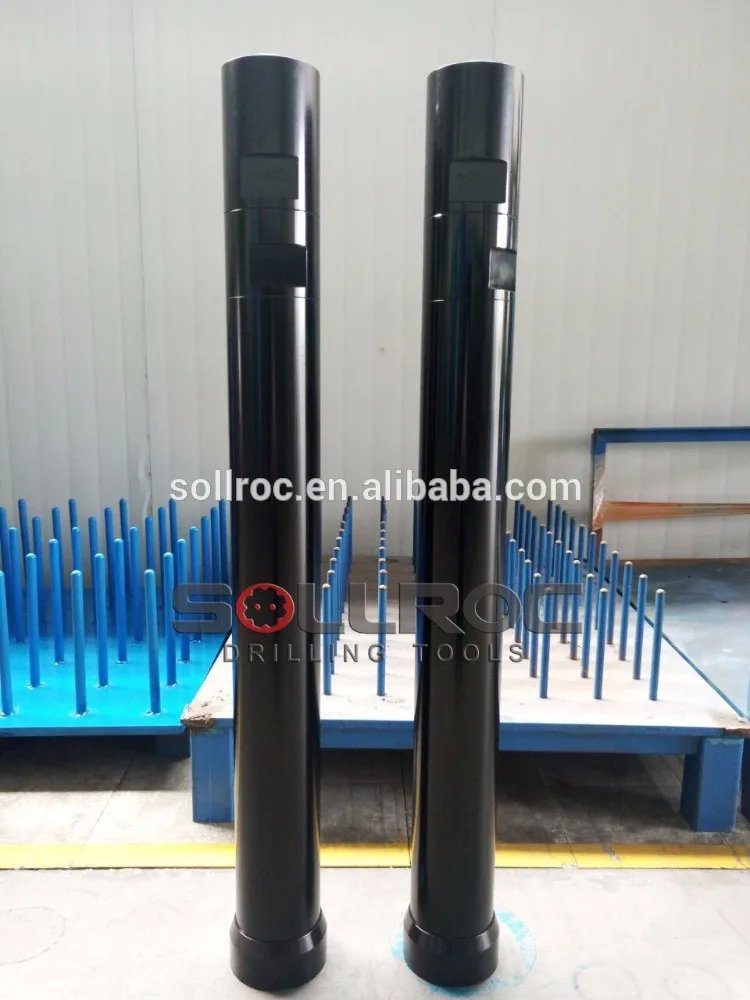

SRC531 3inch 81mm Reverse Circulation RC Hammer for High Performance Well Drilling Images
