Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range

Name: Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range
Brand: SOLLROC
Price: 1 USD

China Reverse Circulation RC Hammer for Exploration Drilling and Grade Control with OD81mm to OD146mm and 84mm to 152mm Bit Range wholesale

Place of Origin : Hunan, China

Brand Name : SOLLROC

MOQ : 1

Price : $1,500

Weight : 84 KG

Material : Carbon Steel

Processing Type : Forging

Size : OD81mm to OD146mm

Connection thread : Remet and Metzke thread

Bit range : 84mm(3.3inch)-152mm(6inch)

Collaring bit dia. : 165mm(6.5inch)-210mm(8.3inch)

Face selection : Drop center, hard formation, concave

External Diameter : 81mm to 146mm

Length : 1069mm to 1362mm

Working Pressure : 1.0-3.5Mpa

Hole Range : 84mm to 190mm

Button configuration : Customizable

Bit head shape : Various selection

Shank design : Interchangeable

Contact Now

Reverse Circulation hammer Reverse circulation RC hammer for exploration and grade control RC drilling string

Features of SOLLROC RC hammer and bit:

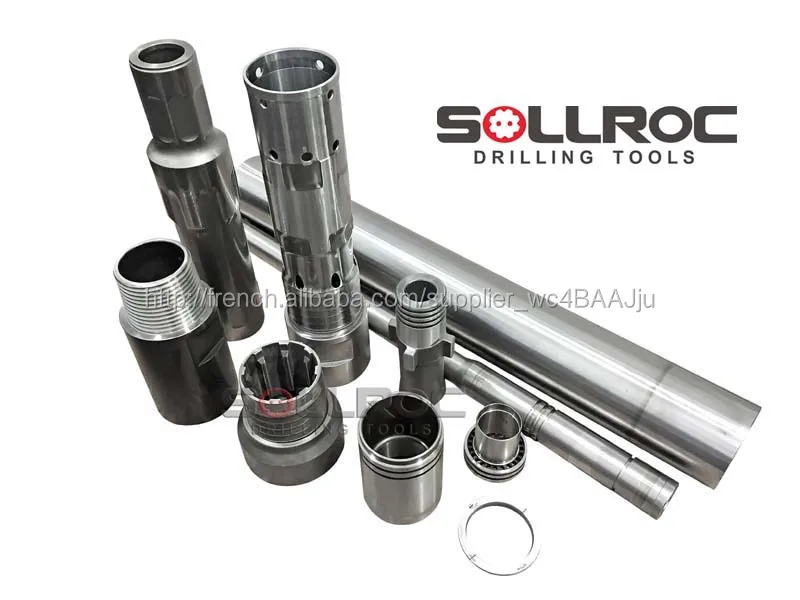

-Spare parts are made of quality raw material with carburized treatment offer good wear resistance. The hammer achieve excellent wear resistance and high penetration rate

-Various selection for bit head shape, button shape and button configuration. It can completely satisfy the customization requirement and have adaptability to varies of rock conditions.

-RC bit is interchangeable with well-known brand shank. The interchangeable shank design helps customers to optimized inventory.

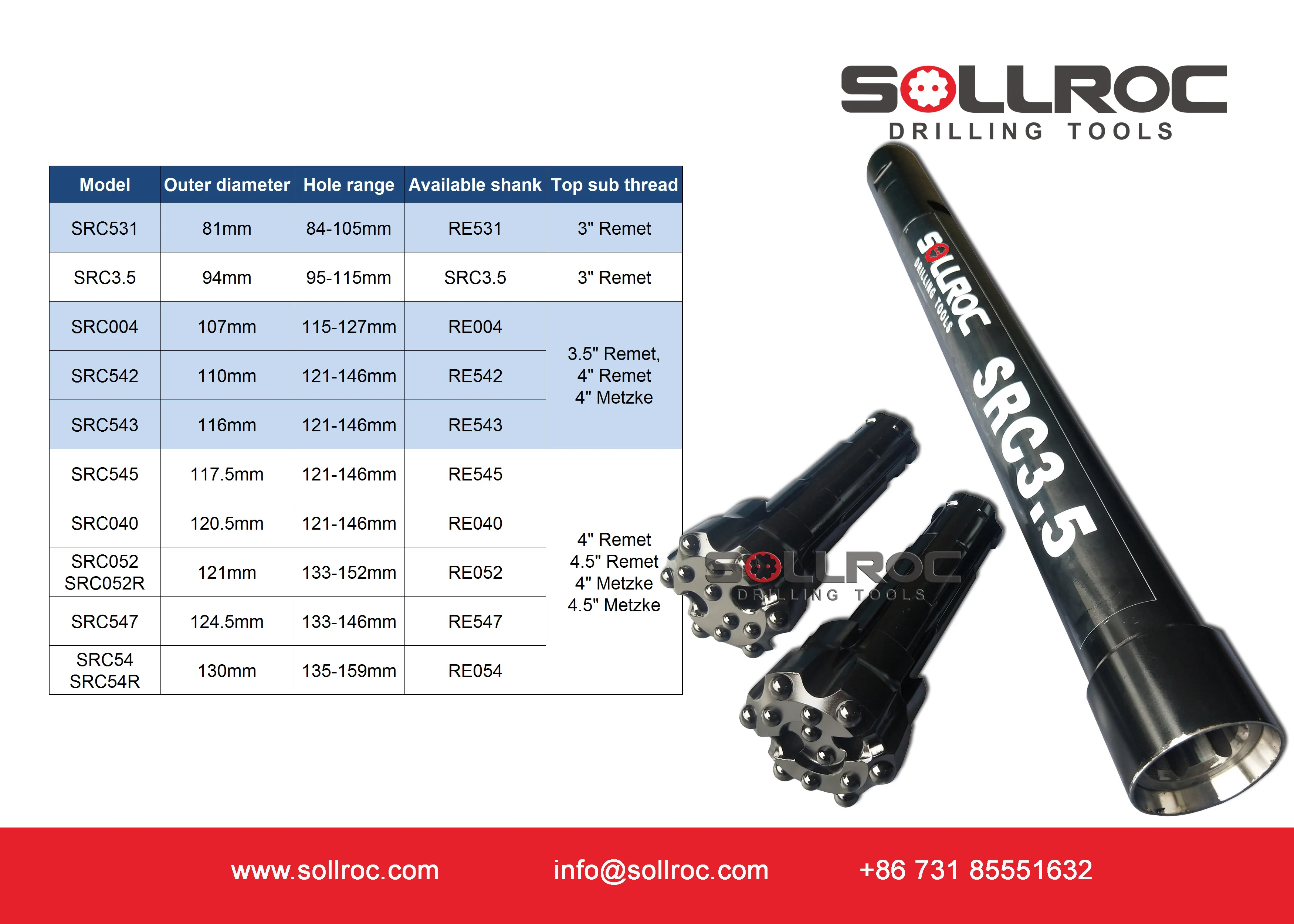

SOLLROC RC hammer specifications:

Hammer	Hole Range	External Diameter	Length	Connection Thread	Working Pressure
Model	(mm)	(mm)	(without bit)
			mm
SRC531	84-105	81	1069	3" Remet	1.0-3.0Mpa
SRC004	115-127	107	1252	3.5-4" Remet	1.0-3.0Mpa
				4" Metzke
SRC542	121-146	109.5	1191	3.5-4" Remet	1.0-3.0Mpa
				4" Metzke
SRC543	121-146	116	1191	3.5-4 Remet	1.0-3.0Mpa
				4" Metzke
SRC545	130-146	117.5	1261	4-4.5" Remet	1.5-3.5Mpa
				4-4.5" Metzke
SRC547	133-146	124.5	1270	4.5" Remet	1.5-3.5Mpa
				4.5" Metzke
SRC040	121-146	120.5	1362	3.5-4.5" Remet	1.5-3.5Mpa
				3.5-4.5" Metzke
SRC052	133-152	121	1227	4-4.5" Remet	1.5-3.5Mpa
				4-4.5" Metzke
SRC052R	133-152	124	1225	4-4.5" Remet	1.5-3.5Mpa
				4-4.5" Metzke
SRC054	135-152	130	1294	4.5" Remet	1.5-3.5Mpa
				4.5" Metzke
SRCMX5456	136-152	132	1362	4.5" Remet	1.5-3.5Mpa
				4.5" Metzke
SRC060	152-190	146	1320	As Request	1.5-3.5Mpa

SOLLROC RC bits sizes.

- RC bits 86mm -102mm for 3" RC hammer SRC531

- RC bits 114mm -127mm for 4" RC hammer SRC004

- RC bits 121mm -133mm for 4.5" RC hammer SRC542/SRC543

- RC bits 124mm - 138mm for 5" RC hammer SRC545/SRC040

- RC bits 133mm - 146mm para 5.5" RC hammer SRC052/SRC547/SRC054/SRCMX5456

We adjust button number, button configuration, button diameter to get ultra performance and reduce the drilling cost for you according to your rock formation situation.

Images

Packaging

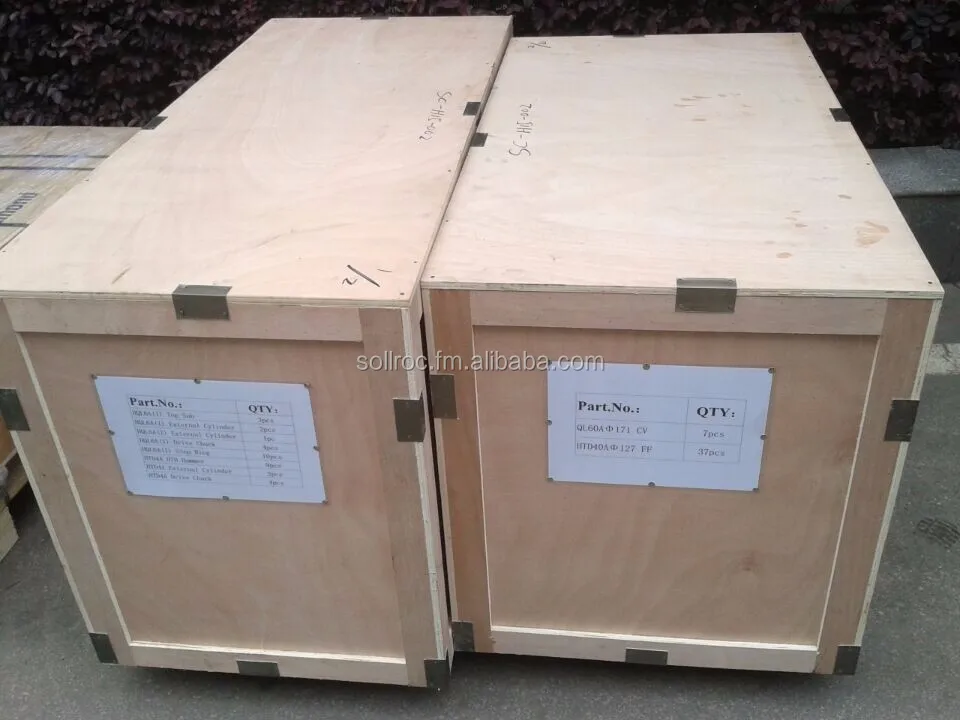

Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
